Custom
Grill Mod - Images
INFO: (Peat)
What you'll need:
Flat stock that is 4" X 1/2" I used aluminum. - to hold in grill
4 sheet metal screws about 1/2" long - to hold in grill
Spray Paint - for the grill and small bar
touch up paint - for the 2 drilled holes
Drill - for holes to support top of grill
Screw Driver
Jig Saw - to cut expanded steel
File or Dremel - to de-burr expanded steel and small bar.
Some expanded Steel or Expanded Stainless Steel if you can get it. I found
only expanded steel at my local hardware store. Enough to make 2, 12 -
12.5" wide by 8.75" high pieces. I found 18 ga with 3/4" openings worked
the best. You can cut the material with a jig saw, if you have access to a
metal shear even better. Cut at the joins and file the ends smooth a
Dremel worked for me.
With the pictures this should be enough to do the job. If you have any
specific questions just e-mail me directly and hopefully I can help. I've
driven around with the grill in place for over a week and so far it's
working nicely.
I got the basic idea from Brian (North Ursulia). Here is a link to his grill mod:
http://members.xoom.com/northursalia/grillmod/grillmod.htm

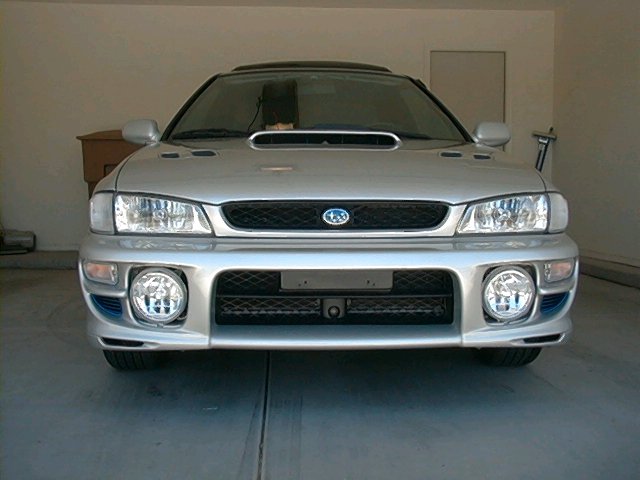

IMAGES: Peat
IMAGES: Aaron
IMAGES: Kastle
